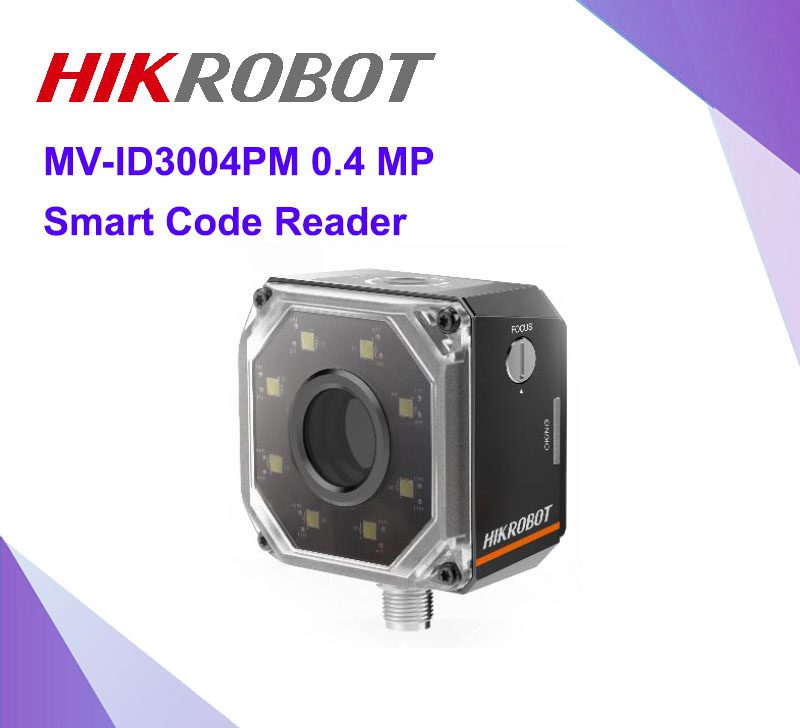

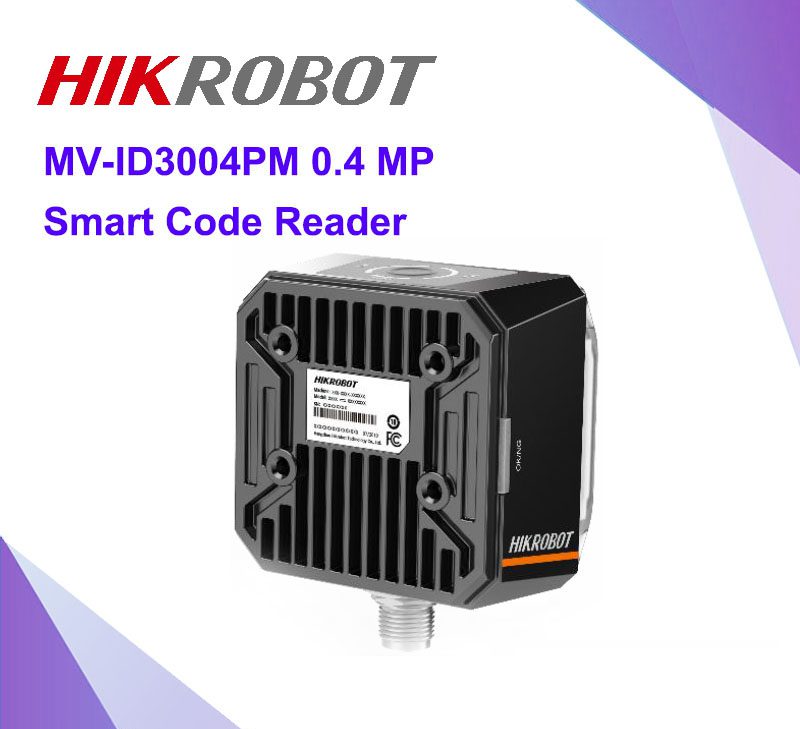

Hikrobot MV-ID3004PM Smart Code Reader

ใช้เซ็นเซอร์ CMOS เพื่อรับข้อมูลภาพ และให้ภาพคุณภาพสูง MV-ID3004PM Smart Code Reader รองรับตัวบ่งชี้ที่แสดงสถานะอุปกรณ์ เหมาะสำหรับอ่านโค้ด เครื่องใช้ไฟฟ้า อาหารและเครื่องดื่ม ยา เซมิคอนดักเตอร์ รถยนต์ ฯลฯ และอื่น ๆ

รายละเอียดเพิ่มเติม

เครื่องอ่านโค้ดอัจฉริยะ Hikrobot MV-ID3004PM Smart Code Reader ใช้ Hikrobot อัลกอริทึมการเรียนรู้และสามารถจดจำและอ่านได้แตกต่างกัน ประเภทของรหัส มีความทนทานที่ดีและมีค่าสูงสุด การอ่าน ความเร็วสูงสุดถึง 60 รหัส/วินาที (ดูสินค้า Hikvision ได้ที่เมนู ซื้อสินค้าออนไลน์ )

Brand: Hikrobot
Type: smart code reader
Available Model: MV-ID3004PM


Specifications

  • Symbologies
    1-dimensional codes: Code 39, Code 93, Code 128, ITF25, CodaBar, EAN
    2-dimensional codes: QR Code, Data Matrix
  • Max. frame rate 60 fps
  • Max. reading speed 60 codes/s
  • Sensor type CMOS, global shutter
  • Sensor size 1/2.9″
  • Resolution 704 × 540
  • Gain 0 dB to 40 dB
  • Communication protocol: SmartSDK, TCP Client, TCP Server, UDP, Serial, FTP, HTTP, PROFINET, Ethernet/IP,
    MELSEC, ModBus
  • Data interface: Fast Ethernet
  • Weight Approx. 250 g (0.6 lb.)
  • Certifications CE, FCC, RoHS, KC.

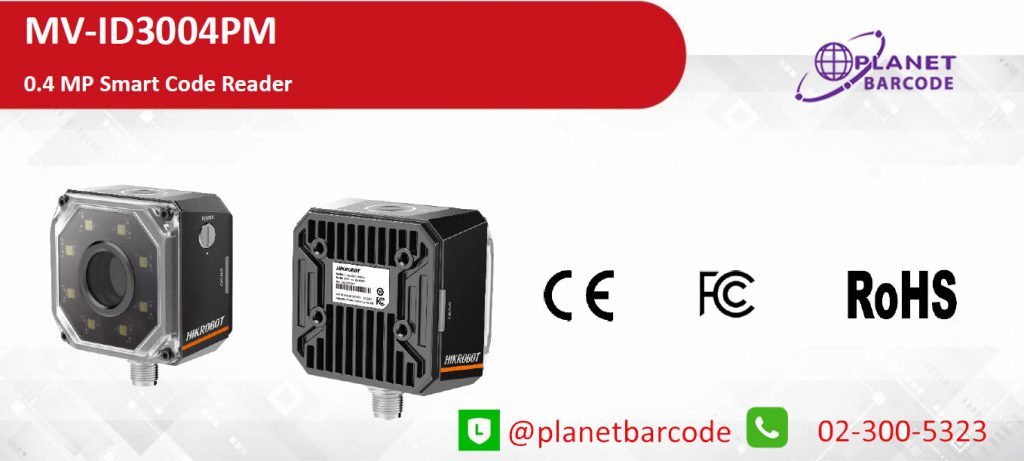

เครื่องอ่านโค้ดอัจฉริยะ Hikvision MV-ID3004PM Smart Code Reader

Available Model

  • 6 mm focal length: MV-ID3004PM-06S-WBN
  • 12.4 mm focal length: MV-ID3004PM-12S-WBN
  • 14.8 mm focal length: MV-ID3004PM-15S-WBN

แพลนเนท บาร์โค้ดเป็น ตัวแทนจำหน่าย  เครื่องอ่านโค้ดอัจฉริยะ Hikrobot MV-ID3004PM Smart Code Reader  สามารถติดต่อ สอบถามรายละเอียด หรือปรึกษาเกี่ยวกับการทำงานของตัวอุปกรณ์ เพิ่มเติมได้จาก facebook ของ PlanetBarcode

ข้อมูลเพิ่มเติม

Decode Capabilities

1D/2D

Image Sensor

1/2.9"

Scan Pattern

N/A

Decode Range

Resolution

704 × 540

Scan Speed

60 codes/s

Interface

Fast Ethernet, RS232

Protection

IP67

Drop

Power

12 VDC to 24 VDC

Downloads

Driver
